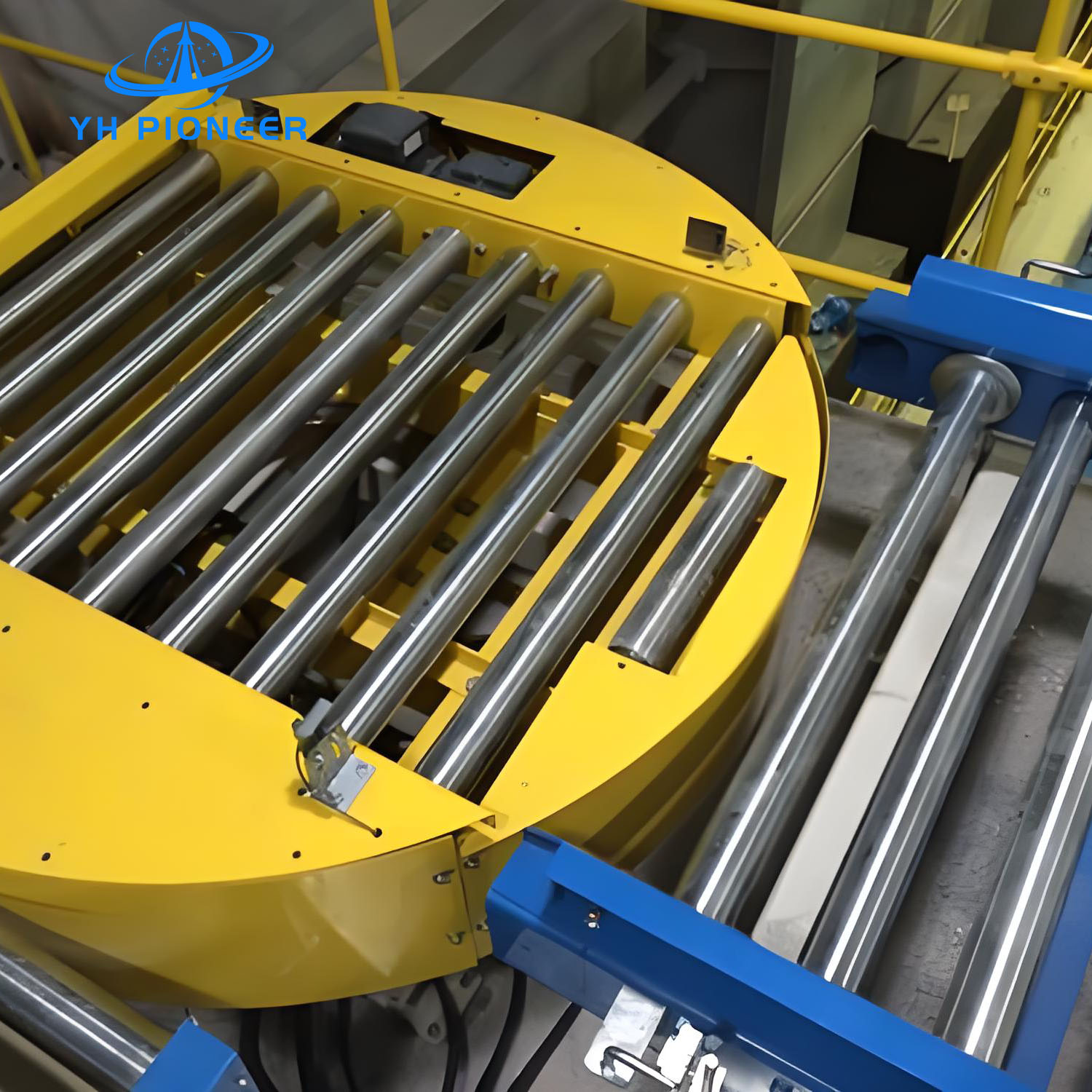

Rotary Turntable Conveyor For Automated Pallet Handling And Material Flow

  • 1
  • 2
  • 3

Brand Name : YH PIONEER

Place of Origin : China

MOQ : 1 Sets

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets/month

Delivery Time : To be negotiated

Packaging Details : Wooden box

Rotating Diameter : 2400mm

Effective Width : 1600mm

Height : 250mm

Rotating Angle : Std. 90 Degree

Roller Centers : 119mm

Turntable Rotating Speed : 3 - 5 rpm, Soft Start/Stop and Variable by Inverter

Roller Table Conveying Speed : 10 m/min, Constant

Driven Type : Rotating Driven by Slewing Bearing; Roller Table Roll to Roll Driven by 10A (15.875 mm Pitch) Roller Chain.

Contact Now

Efficient Rotary Turntable Conveyor for Automated Pallet Handling and Material Flow



Rotary Turntable Conveyor



We provide professional Rotary Turntable Conveyor, support the conveying of various types of bottles, and provide a variety of conveying types.

The Rotary Turntable Conveyor is a pivotal component in material handling systems, designed to facilitate the efficient transfer of goods between intersecting conveyor lines or to rotate products for specific processing needs. This robust and versatile conveyor solution is engineered to enhance productivity and ergonomics in various manufacturing and packaging environments


PRODUCT  ADVANTAGE

  *The Rotary Turntable Conveyor is designed for heavy-duty applications, capable of withstanding weights up to 2000 kg.
  *It can adapt to any rotational requirement within its range, accommodating various pallet sizes and types.
  *The roller or chain platform can be installed on the rotating bearing according to layout requirements and pallet specifications.
  *The conveyor offers high load capacity, precise pallet rotation, reduced manual operation, and enhanced production efficiency and safety.



PRODUCT SPECIFICATIONS

Rotating Diameter: 2400 mm, providing ample space for pallets or large items.
Effective Width: 1600 mm, accommodating a wide range of product dimensions.
Height: 250 mm, suitable for bottom and side loading/unloading operations.
Rotating Angle: Standard 90 degrees, customizable for other angles as needed.
Double Sprocket Rollers: Equipped with rollers of Ø 76 mm diameter and 3 mm tube wall thickness.
Tube Material: Galvanized Steel for corrosion resistance.
Axle Diameter: Ø 20 mm, ensuring sturdy support.
Axle Retention: Female thread retained with M12 bolts for secure fastening.
Roller Centers: Set at 119 mm for uniform distribution and support.
Turntable Rotating Speed: Variable, ranging from 3 to 5 rpm with soft start/stop.
Roller Table Conveying Speed: Constant at 10 m/min.
Driven Type: Rotating driven by slewing bearing; roller table roll to roll driven by 10A (15.875 mm pitch) roller chain.
Voltage: 380 VAC 3 ph 50/60 Hz for reliable power supply.
Motor: Rotating Motor is a 0.55 kw DELI braked gear motor; Roller Conveying Motor is a 0.75 kw GPG motor.
Frame Finish: Powder coated in standard RAL 7035 for durability and aesthetics.
Load Capacity: Capable of handling up to 1500 kg, suitable for heavy-duty applications.



PRODUCT MATERIALS

  *The frame of the Rotary Turntable Conveyor is meticulously crafted from carbon steel, which is then coated with a high-quality paint finish to ensure longevity and stability across diverse working conditions.
  *The rollers are precision-engineered using steel, and are finished with a galvanized coating, thereby providing a durable and corrosion-resistant surface that maintains performance even in harsh environments.
  *The drive system is composed of a gear motor and chain transmission, both of which are designed for dependable operation and are crafted to facilitate straightforward maintenance routines.



PRODUCT APPLICATION

  *The Rotary Turntable Conveyor is widely applied in industries such as food and beverage, pharmaceuticals, and general manufacturing for pallet transfer and product rotation.
  *It is particularly useful in scenarios where space is limited but the need for efficient material handling is high.
  *The turntable conveyor can be integrated into existing systems or used as a standalone solution for various material handling challenges.



SERVIC and SUPPORT

We provide comprehensive maintenance services to ensure the Rotary Turntable Conveyor remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.


PRODUCT PARAMENTERS



Rotating Diameter
2400 mm
Effective Width
1600 mm
Height
250 mm
Rotating Angle
Std. 90 Degree


Double Sprocket
Rollers
Roller Diameter
Ø 76 mm
Tube Wall Thickness
3 mm
Tube Material
Galvanized Steel
Axle Diameter
Ø 20 mm
Axle Retention
Female Thread Retained (Using with M12 Bolts)
Roller Centers
119 mm
Turntable Rotating Speed
3 - 5 rpm, Soft Start/Stop and Variable by Inverter
Roller Table Conveying Speed
10 m/min, Constant
Driven Type
Rotating Driven by Slewing Bearing;
Roller Table Roll to Roll Driven by 10A (15.875 mm Pitch) Roller Chain;
Voltage
380 VAC 3 ph 50/60 Hz
Motor
Rotating Motor: 0.55 kw DELI Braked Gear Motor;
Roller Conveying Motor: 0.75 kw GPG Motor;
Frame Finish
Powder Coated (Std. RAL 7035)
Load Capacity
1500 kg

*It can be modified according to customer requirements.
