We provide professional Rail Guided Vehicle, support the conveying of various types of bottles, and provide a variety of conveying types.

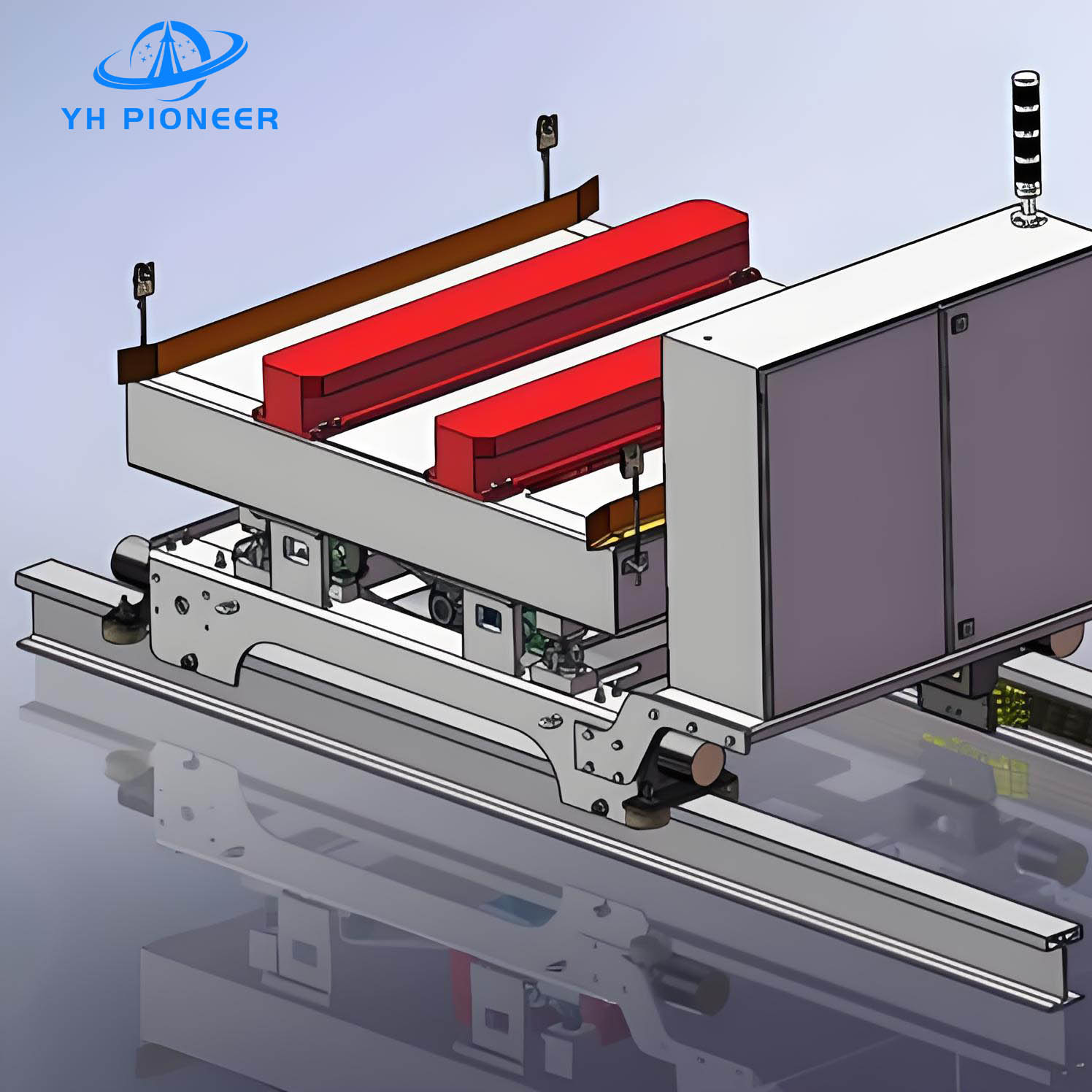

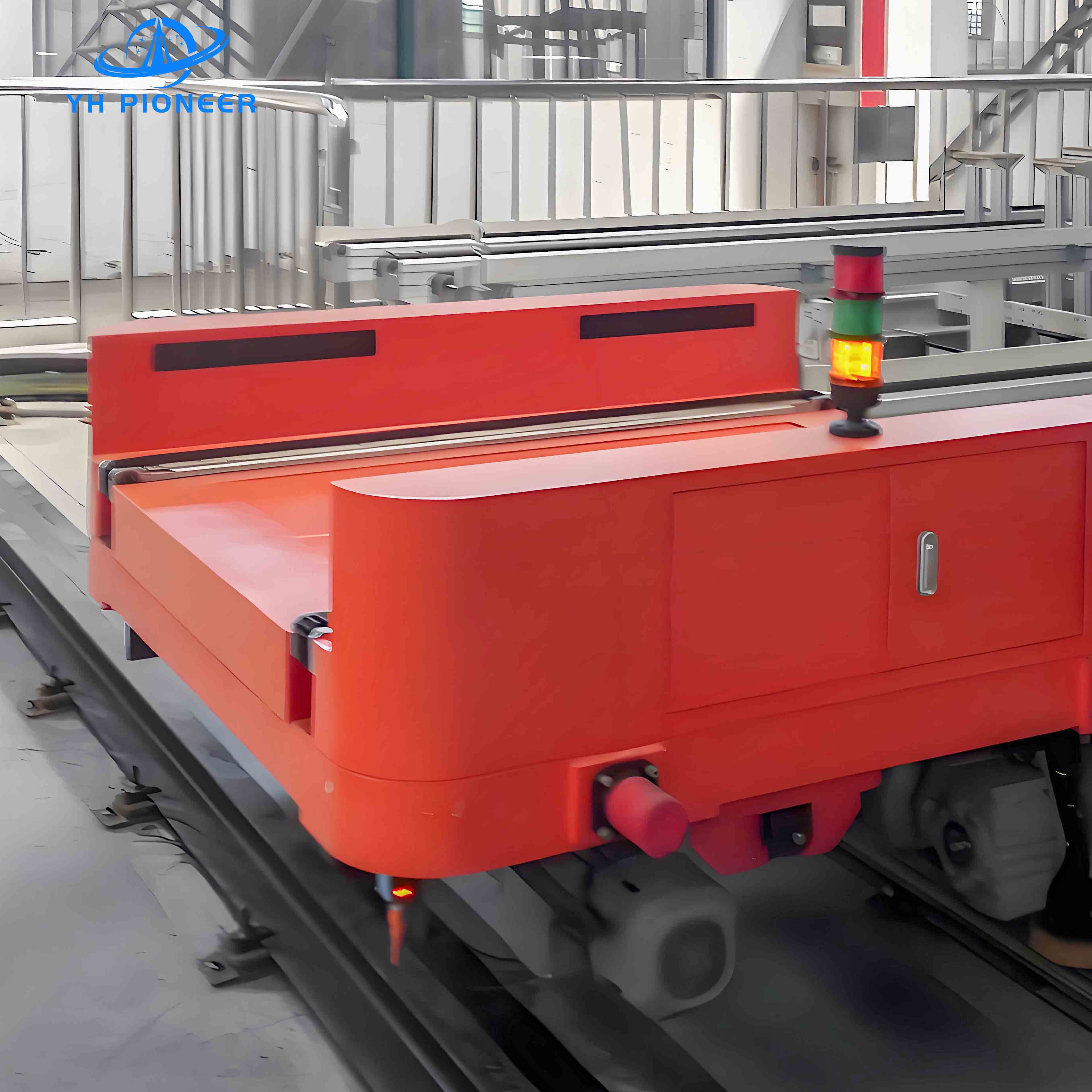

The Rail Guided Vehicle (RGV) is a high-performance material handling system specifically designed for the automated transportation of goods along a predetermined path defined by rails. Known for its rapid transit capabilities and stable operations, the RGV is a cornerstone in modern warehousing and manufacturing facilities, ensuring efficient material flow and seamless integration with various production and storage systems
PRODUCT PARAMENTERS
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.
PRODUCT ADVANTAGE
*The RGV is composed of durable materials like nylon and stainless steel, offering high resistance to wear, corrosion, and various environmental factors.
*It features a modular design with a fixed skeleton on the back, allowing for versatile installation in both straight and curved applications.
*The vehicle is designed to reduce friction and noise during operation, thereby enhancing the efficiency of the conveyor system.
*The RGV's compact and space-saving design, along with its easy installation, contributes to cost savings and improved installation efficiency.
*It is highly adaptable, with the ability to adjust to different production line layouts and handle various load sizes and weights.
PRODUCT SPECIFICATIONS
Table Size: 3.6m x 2.0m x 0.5m, accommodating various sizes of loads.
Power Source: Maintenance-free battery, ensuring low downtime and reduced operational costs.
Rail Inner Gauge: 1435mm, standard for most industrial applications.
Wheel Diameter: 350mm, providing smooth and stable movement.
Running Speed: Variable up to 20m/min, adaptable to different operational requirements.
Motor Power: 1.6kw, offering robust performance for material transport.
Battery Capacity: 180Ah, supporting extended periods of operation.
Battery Voltage: 48V, a safe and efficient power supply for the vehicle.
Max Wheel Load: 42.6Kn, capable of handling heavy loads.
Reference Weight: 4.2t, indicating the vehicle's substantial build and capacity.
Recommended Rail: P24, suitable for the vehicle's operation and wear resistance.
PRODUCT MATERIALS
